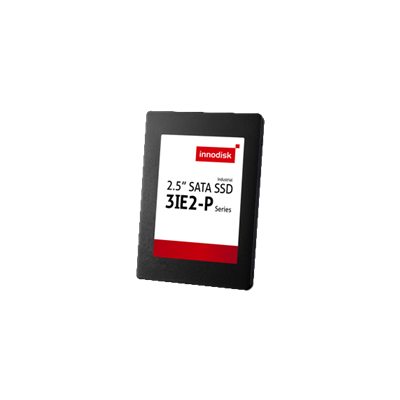

| Module Name | 2.5” SATA SSD 3IE2-P |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | iSLC |
| Capacity |
8GB~512GB |
| Sequential R/W (MB/sec, max.) | 530/450 |
| Max. Power Consumption | 2.29 W (5V x 457 mA ) |
| Max. Channels | 4 |
| Thermal Sensor | Y |
| External DRAM Buffer | Y |
| H/W Write Protect | N |
| iCell | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 69.85 x 100.10 x 7.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. |
8GB |
16GB |
32GB |
64GB |
128GB |
256GB |
512GB |
|
Standard Grade (0°C ~ +70°C) |
DHS25-08GD81BC3DC |
DHS25-16GD81BC3DC DHS25-16GD81BC3QC |
DHS25-32GD81BC3QC DHS25-32GD81BC1QC |
DHS25-64GD81BC3QC DHS25-64GD81BC1QC |
DHS25-A28D81BC3QC | DHS25-B56D81BC1QC | DHS25-C12D81BCAQC |
|
Industrial Grade (-40°C ~ +85°C) |
DHS25-08GD81BW3DC |
DHS25-16GD81BW3DC DHS25-16GD81BW3QC |
DHS25-32GD81BW3QC DHS25-32GD81BW1QC |
DHS25-64GD81BW3QC DHS25-64GD81BW1QC |
DHS25-A28D81BW3QC | DHS25-B56D81BW1QC | DHS25-C12D81BCAQC |
