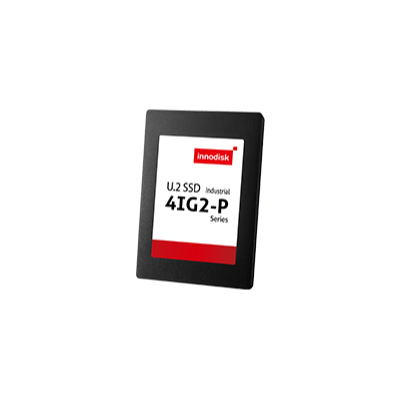

| Module Name | U.2 SSD 4IG2-P |
| Interface | PCIe Gen IV x4 |
| Flash Type | iSLC |
| Capacity |
160GB~1.28TB |
| Sequential R/W (MB/sec, max.) | 6,900/4,900 |
| Max. Power Consumption | 12.1W |
| Max. Channels | 8 |
| Thermal Sensor | Y |
| External DRAM Buffer | Y |
| TCG Opal | Y (Optional) |
| iCell | N |
| H/W Write Protect | N |
| Dimension (WxLxH/mm) | 69.85 x 100.0 x 6.9 |
| Shock | 1500G@0.5ms |
| Vibration | 20G@7~2000Hz |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. |
160GB |
320GB |
640GB |
1.28TB |
|
Standard Grade (0°C ~ +70°C) |
DHEU2-A60DP1KCAEL DHEU2-A60DP2KCAEL |
DHEU2-D2GDP1KCAEL DHEU2-D2GDP2KCAEL |
DHEU2-F4GDP1KCAEL DHEU2-F4GDP2KCAEL |
DHEU2-1T2DP1KCAEL DHEU2-1T2DP2KCAEL |
|
Industrial Grade (-40°C ~ +85°C) |
DHEU2-A60DP1KWAEL DHEU2-A60DP2KWAEL |
DHEU2-D2GDP1KWAEL DHEU2-D2GDP2KWAEL |
DHEU2-F4GDP1KWAEL DHEU2-F4GDP2KWAEL |
DHEU2-1T2DP1KWAEL DHEU2-1T2DP2KWAEL |
