innoDisk/宜鼎内存条DDR5 UDIMM ULP

产品特色 Very Low Profile Specialized For Use in 1U System Fully Tested and Optimized for Stability and Performance Uses Original IC to Meet Strict Industrial Standards Anti-Sulfuration Protection Against Harsh On module Power Management IC (JEDEC Standard:1.1V) Operating Environment (TC): 0°C ~ 95°C Anti-Sulfuration Protection Against Harsh Environments 30μ” Gold Finger RoHS Compliance CE/FCC Certification

在线咨询资料下载

全国热线

400-888-2720

介绍:

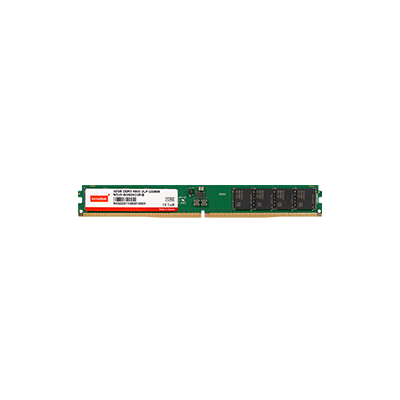

DDR5 WT UDIMM ULP 采超薄型设计，除提供业界最快5600MT/s内存速度外，更完全兼容于Intel® Purely平台与1U服务器设备。本系列模块符合所有JEDEC相关标准，提供16GB与32GB容量。

ULP模块专门用于1U系统，例如系统高度低于1.18英寸刀片式服务器数据中心。此外，本系列模块经过精心设计，可强化系统散热风流，降低热冲击的影响。

规格：

Interface	DDR5
Form Factor	UDIMM ULP
Data Rate	4800 MT/s, 5600 MT/s
Capacity	16GB, 32GB
Function	Unbuffered Memory
Pin Number	288pin
Width	64Bits
Voltage	1.1V
PCB Height	0.7 Inches
Operating Temperature	0°C to 95°C (Tc)
Anti-Sulfuration	Y
30μ	Y

产品料号：

Density	Component Composition	Part Number	Rank	Voltage	Description
16GB	2Gx8	M5U0-AGS23CZQ	1Rx8	1.1V	DDR5 5600 UDIMM ULP
16GB	2Gx8	M5U0-AGM23CZQ	1Rx8	1.1V	DDR5 5600 UDIMM ULP
32GB	2Gx8	M5U0-BGS24CZQ	2Rx8	1.1V	DDR5 5600 UDIMM ULP
32GB	2Gx8	M5U0-BGM24CZQ	2Rx8	1.1V	DDR5 5600 UDIMM ULP
