CF 6.0 standard compatible
supporting PIO 0-6/UDMA 0-6 in True-IDE mode
Write protection security
Read disturb management
Secure Erase
iPowerGuard
iDataGuard
Support iSLC technology

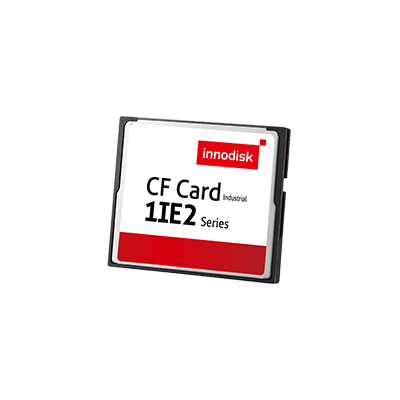

| Module Name | iCF 1IE2 |
| Interface | PATA |
| Flash Type | iSLC |
| Capacity | 4GB~128GB |
| Sequential R/W (MB/sec, max.) | 85/55 |
| Max. Power Consumption | 0.60 W |
| Max. Channels | 2 |
| H/W Write Protect | Optional |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Thermal Sensor | Y |
| Dimension (WxLxH/mm) | 42.8 x 36.4 x 3.3 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 4GB | 8GB | 16GB | 32GB | 64GB | 128GB |
|
Standard Grade (0°C ~ +70°C)
|
DHCFC-04GYA2BC1SC(W) | DHCFC-08GYA2BC1SC(W) | DHCFC-16GYA2BC1DC(W) | DHCFC-32GYA2BC1DC(W) | DHCFC-64GYA2BC1DC(W) | DHCFC-A28YA2BC1DC(W) |
|
Industrial Grade (-40°C ~ +85°C) |
DHCFC-04GYA2BW1SC(W) | DHCFC-08GYA2BW1SC(W) | DHCFC-16GYA2BW1DC(W) | DHCFC-32GYA2BW1DC(W) | DHCFC-64GYA2BW1DC(W) | DHCFC-A28YA2BW1DC(W) |
