产品特色
PCIe Gen 4 x4, NVMe 1.4
Excellent data transfer speed
Heat-spreading design
Support iPower Guard & iData Guard
Thermal Throttling Management
iCell technology for power loss protection
256 bit AES hardware based encryption
Support TCG OPAL function (optional)

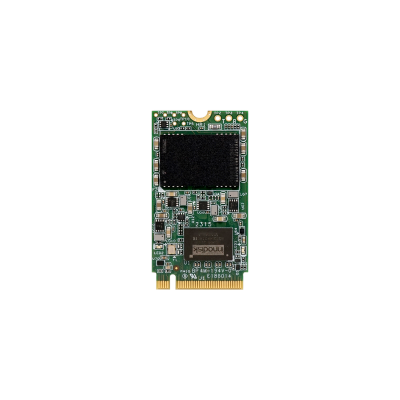

Innodisk M.2 (P80) 4TE2 是一款 NVMe DRAM-less SSD ，采用 PCIe 接口与工业级 3D TLC NAND 。M.2 (P80) 4TE2 支持 PCIe Gen 4 x4 ，符合 NVMe 1.4 标准，提供卓越且持久的顶级效能。
这款模块还具备精细的错误侦测和修正（ECC ）功能，可提供完整的端对端数据路径保护，确保主机系统与 NAND Flash 之间的数据传输安全无虞。
| Module Name | M.2 (P80) 4TE2 |
| Interface | PCIe Gen. IV x4 |
| Flash Type | 3D TLC |
| Capacity | 128GB~2TB |
| Sequential R/W (MB/sec, max.) | 3,550/3,300 |
| Max. Power Consumption | 5.4W |
| Max. Channels | 4 |
| Thermal Sensor | Y |
| AES Encryption | Y |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| S.M.A.R.T. | Y |
| TCG Opal | Y (Optional) |
| iCell | Y (Optional) |
| Dimension (WxLxH/mm) |

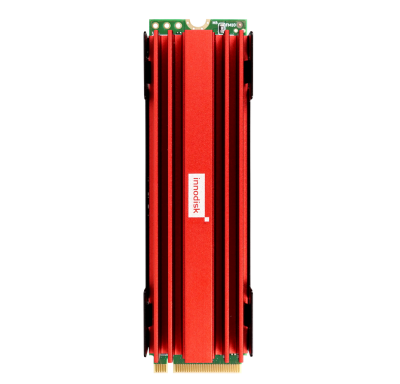

22.0 x 80.0 x 4.25 mm (ST with heat-spreading copper layer) 25.0 x 80.0 x 14.45 mm (WT with heatsink) |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | > 3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
