SD 3.0 interface
Support Class 10 with UHS-I
Adopt TLC NAND flash
High performance
Targeted for portable and stationary applications
SMART function supported

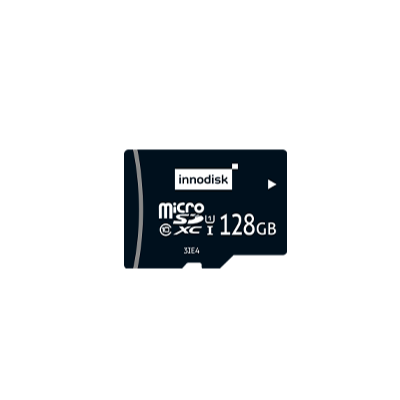

Module Name | MicroSD Card 3IE4 |
Interface | SD 3.0 |
Flash Type | iSLC |
Capacity | 8GB~128GB |
Sequential R/W (MB/sec, max.) | 90/80 |
Max. Power Consumption | 0.7 W |
Max. Channels | 1 |
S.M.A.R.T. | Y |
Dimension (WxLxH/mm) | 11.0 x 15.0 x 1.0 |
Vibration | 20G@7~2000Hz |
Shock | 1500G@0.5ms |
MTBF | >3 million hours |
Storage Temperature | -40°C ~ +85°C |
Operation Temperature | Extended Grade: -25°C ~ +85°C |
Endurance | 30,000 P/E cycles; 100,000 P/E cycles(112-L) |
Operation Temp. | 8GB | 16GB | 32GB | 64GB | 128GB |
Standard Grade (-25°C ~ +85°C) |
DHSDM-08GS06EE1SL | DHSDM-16GS06%E1SL | DHSDM-32GS06%E1SL | DHSDM-64GS06%E1SL | DHSDM-A28S06%E1SL |
Industrial Grade (-40°C ~ +85°C) |
DHSDM-08GS06EW1SL | DHSDM-16GS06%W1SL | DHSDM-32GS06%W1SL | DHSDM-64GS06%W1SL | DHSDM-A28S06%W1SL |
