SD 3.0 interface
High performance
Power fail Management
LDPC ECC algorithm implement

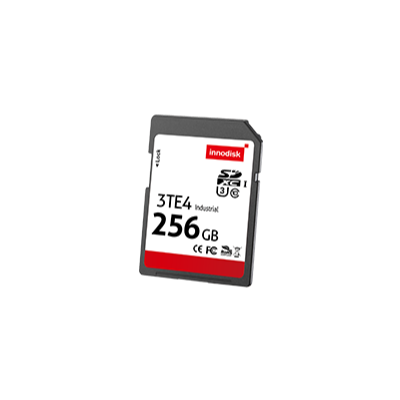

| Module Name | Industrial SD Card 3TE4 |
| Interface | SD 3.0 |
| Flash Type | 3D TLC |
| Type | Standard |
| Capacity | 32GB~256GB |
| Sequential R/W (MB/sec, max.) | 90/80 |
| Max. Power Consumption | 0.7W |
| Max. Channels | 1 |
| H/W Write Protect | Y |
| Dimension (WxLxH/mm) | 24 x 32.0 x 2.1 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Endurance | 30,000 P/E cycles |
| Operation Temp. | 32GB | 64GB | 128GB | 256GB |
|
Extend Grade (-25°C ~ +85°C) |
DESDC-32GS06EE1SL | DESDC-64GS06%E1SL | DESDC-A28S06%E1SL | DESDC-B56S06%E1SL |
|
Industrial Grade (-40°C ~ +85°C) |
DESDC-32GS06EW1SL | DESDC-64GS06%W1SL | DESDC-A28S06%W1SL | DESDC-B56S06%E1SL |
