SATA III solution for Server Boot-Up Drive
Exclusive L³ architecture
DRAM-less, 100% data integrity
Excellent random performance
Designed with hardware LDPC ECC engine
Cost-effective Flash with iSLC
Cable-less through Pin 7/Pin 8 connectors
Hardware write protection supported
High less than 1U

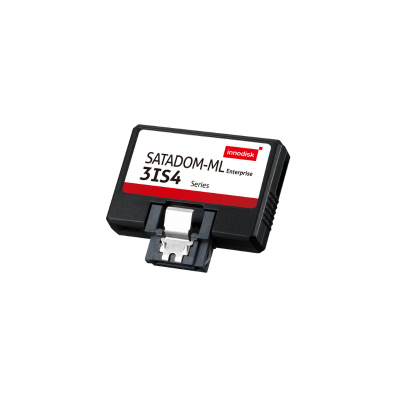

| Module Name | SATADOM-ML 3IS4 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | iSLC |
| Type | Vertical |
| Capacity | 16GB~128GB |
| Sequential R/W (MB/sec, max.) | 540/400 |
| Max. Power Consumption | 0.815W (5V x 163mA ) |
| Max. Channels | 2 |
| Thermal Sensor | Y |
| ATA Security | Y |
| H/W Write Protect | Y |
| Pin 7 Power | Y |
| Pin 8 Power | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 36.7 x 31.2 x 10.7 |
| MTBF | >3 million hours |
| Shock | 1500G@0.5ms |
| Vibration | 20G@7~2000Hz |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 16GB | 32GB | 64GB | 128GB |
| Standard Grade (0°C ~ +70°C) | DSSML16GM413CADC* | DSSML32GM413CADC* | DSSML64GM413CADC* | DSSMLA28M413CADC* |
| Industrial Grade (-40°C ~ +85°C) | DSSML16GM413WADC* | DSSML32GM413WADC* | DSSML64GM413WADC* | DSSMLA28M413WADC* |
