产品特色
SD 3.0 interface
Support Class 10 with UHS-I
Adopt MLC NAND flash
High performance
Targeted for portable and stationary applications
SMART function supported

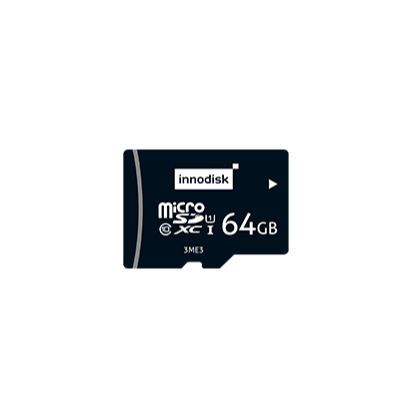

| Module Name | MicroSD Card 3ME3 |
| Interface | SD 3.0 |
| Flash Type | MLC |
| Capacity | 8GB~64GB |
| Sequential R/W (MB/sec, max.) | 75/31 |
| Max. Power Consumption | 0.49W (3.3V x 149mA) |
| Max. Channels | 1 |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 11.0 x 15.0 x 1.0 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -25°C ~ +85°C |
| Operation Temp. | 8GB | 16GB | 32GB | 64GB |
|
Standard Grade (-25°C ~ +85°C) |
DESDM-08GS02SE1SK | DESDM-16GS02SE1SK | DESDM-32GS02SE1SK | DESDM-64GS02SE1SK |
|
Industrial Grade (-40°C ~ +85°C) |
DESDM-08GS02SW1SK | DESDM-16GS02SW1SK | DESDM-32GS02SW1SK | DESDM-64GS02SW1SK |
