SATA 6.0 Gb/s interface
Followed JEDEC MO-300/MO-300B standard
LDPC technology secures SSD reliability
DRAM-less, high-level data integrity
L³ architecture extends lifespan
Excellent IOPS boosts system performance
Built-in thermal sensor
Support S.M.A.R.T, TRIM and NCQ

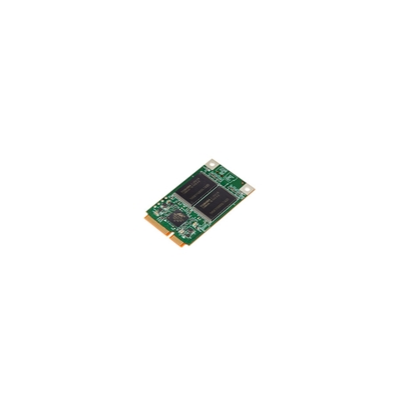

| Module Name | mSATA 3ME4 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 8GB~256GB |
| Sequential R/W (MB/sec, max.) | 530/210 |
| Max. Power Consumption | 0.6 W ( 3.3 V x 0.2 A ) |
| Max. Channels | 2 |
| ATA Security | Y |
| H/W Write Protect | Optional |
| S.M.A.R.T. | Y |
| Thermal Sensor | Y |
| Dimension (WxLxH/mm) | 29.85 x 50.8 x 3.7 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 8GB |
16GB |
32GB | 64GB | 128GB | 256GB |
|
Standard Grade (0°C ~+70°C) |
DEMSR-08GM41BC1SC |
DEMSR-16GM41BC1DC DEMSR-16GM41BC1SC |
DEMSR-32GM41BC1DC | DEMSR-64GM41BC1DC | DEMSR-A28M41BC1DC | DEMSR-B56M41BC1DC |
|
Industrial Grade (-40°C ~ +85°C) |
DEMSR-08GM41BW1SC |
DEMSR-16GM41BW1DC DEMSR-16GM41BW1SC |
DEMSR-32GM41BW1DC | DEMSR-64GM41BW1DC | DEMSR-A28M41BW1DC | DEMSR-B56M41BW1DC |
