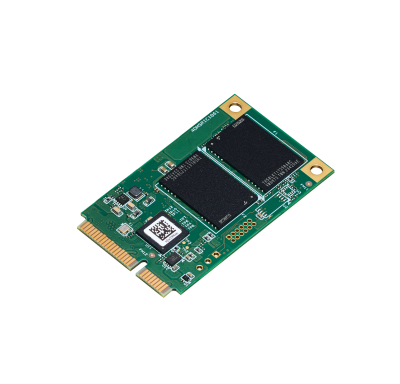

mSATA SATA III solution for industrial field
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down.
iData Guard for abnormal power failure
| Module Name | mSATA SSD 3TEB |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | 3D TLC |
| Capacity | 64GB~1TB |
| Sequential R/W (MB/sec, max.) | 560/480 |
| Max. Power Consumption | 1.3W |
| Max. Channels | 2 |
| ATA Security | Y |
| H/W Write Protect | N |
| S.M.A.R.T. | Y |
| Thermal Sensor | Y |
| Dimension (WxLxH/mm) | 29.85 x 50.8 x 4.75 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 64GB | 128GB | 256GB | 512GB | 1TB |
|
Standard Grade (0°C ~+70°C) |
- |
DEMSR-A28IC1KCADF |
DEMSR-B56IC1KCADF |
DEMSR-C12IC1KCADF |
DEMSR-01TIC1KCADF |
|
Industrial Grade (-40°C ~ +85°C) |
DEMSR-64GIC1KWASF |
DEMSR-A28IC1KWADF |
DEMSR-B56IC1KWADF |
DEMSR-C12IC1KWADF |
DEMSR-01TIC1KWADF |
