工业存储产品及解决方案
产品特色
PCIe Gen 4 x4, NVMe 1.4
Ultra iSLC technology
Excellent data transfer speed
Heat-spreading design iPower Guard / iData Guard
Thermal Throttling Management
iCell technology for power loss protection
256 bit AES hardware based encryption

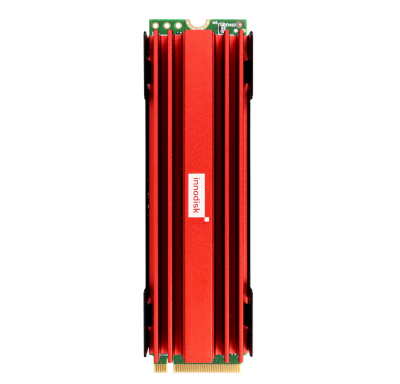

Innodisk M.2 (P42) 4IE2 是一款 NVMe DRAM-less SSD，采用 PCIe 接口与工业级 3D TLC NAND。M.2 (P42) 4IE2 支持 PCIe Gen 4 x4，符合 NVMe 1.4 标准，提供卓越且持久的顶级效能。
这款模块还具备精细的错误侦测和修正（ECC ）功能，可提供完整的端对端数据路径保护，确保主机系统与 NAND Flash 之间的数据传输安全无虞。
| Module Name | M.2 (P80) 4IE2 |
| Interface | PCIe Gen. IV x4 |
| Flash Type | iSLC (3D TLC) |
| Capacity | 40GB~640GB |
| Sequential R/W (MB/sec, max.) | 3,550/3,300 |
| Max. Power Consumption | 5.1W |
| Max. Channels | 4 |
| Thermal Sensor | Y |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| PLP (iCell) | Y (Optional) |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) |
22.0 x 80.0 x 3.8 mm (ST) 25.0 x 80.0 x 14.45 mm (WT with heatsink) |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | > 3 million hours |
| Storage Temperature | -40°C ~ +85°C |
