工业存储产品及解决方案
工作温度：-40°C ~ 95°C（Tc）
内置暂存器以增强时钟、指令及控制信号
外形小巧，与SODIMM同为262pin针脚
独特PCB设计，强化电源和信号完整性
与传统RDIMM相比，可节省50%以上的空间
采用原厂IC芯片，符合严格工业标准
30μ”金手指，强化传输稳定性
通过RoHS和CE/FCC认证
| DDR Generation | DDR5 Memory |
| DIMM Type | SORDIMM |
| Speed | 4800 MT/s, 5600 MT/s, 6400 MT/s |
| Density | 16GB, 24GB, 32GB |
| Function | Registered Memory with ECC |
| Pin Number | 262pin |
| Bus Width | x80 |
| Voltage | 1.1V |
| PCB Height | 1.18 Inches |
| Operating Temperature | -40°C ~ 95°C (Tc) |
| 30μ | Y |
| Anti-Sulfuration | Y |
|
P/N |
IC Config. | Rank | Temp. | Description |

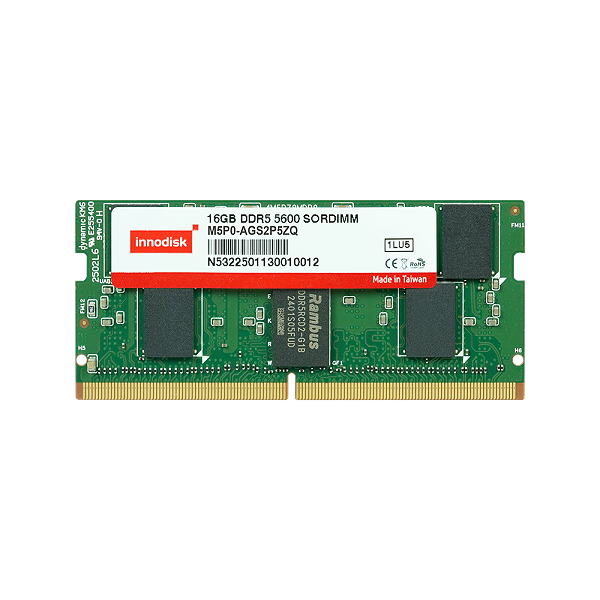

| M5P0-AGS2P5ZQ | 2G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 16GB Wide Temperature SORDIMM |
| M5P0-AGM2PCZQ |
2G x 8 |
1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 16GB Wide Temperature SORDIMM |
| M5P0-AGH2P5ZQ | 2G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 16GB Wide Temperature SORDIMM |
| M5P0-FGHZP5ZQ | 3G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 16GB Wide Temperature SORDIMM |
