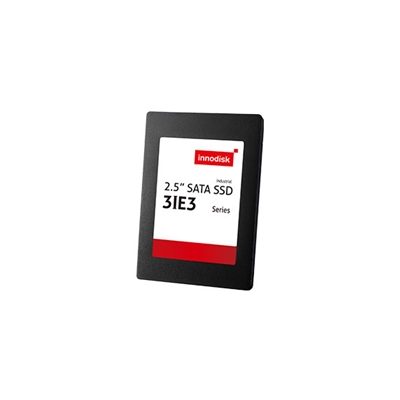

| Module Name | 2.5” SATA SSD 3IE3 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | iSLC |
| Capacity |
8GB~256GB |
| Sequential R/W (MB/sec, max.) | 440/240 |
| Max. Power Consumption | 2.71 W (5V x 542 mA ) |
| Max. Channels | 4 |
| Thermal Sensor | ST- Optional / WT- Default |
| External DRAM Buffer | N |
| iCell | N |
| H/W Write Protect | N |
| ATA Security | Y |
| Dimension (WxLxH/mm) | 69.85 x 100.10 x 7.0 |
| S.M.A.R.T. | Y |
| Shock | 1500G@0.5ms |
| Vibration | 20G@7~2000Hz |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. |
8GB |
16GB |
32GB |
64GB |
128GB |
256GB |
|
Standard Grade (0°C ~ +70°C) |
DHS25-08GD09BC1SC DHS25- 08GD09BC1DC |
DHS25-16GD09BC1DC DHS25- 16GD08BC3QC |
DHS25-32GD08BC3QC | DHS25-64GD08BC3QC | DHS25-A28D08BC3QC | DHS25-B56D08BC1QC |
|
Industrial Grade (-40°C ~ +85°C) |
DHS25-08GD09BC1SC DHS25- 08GD09BC1DC |
DHS25-16GD09BC1DC DHS25- 16GD08BC3QC |
DHS25-32GD08BW3QC | DHS25-64GD08BW3QC | DHS25-A28D08BW3QC | DHS25-B56D08BW1QC |
