工业存储产品及解决方案

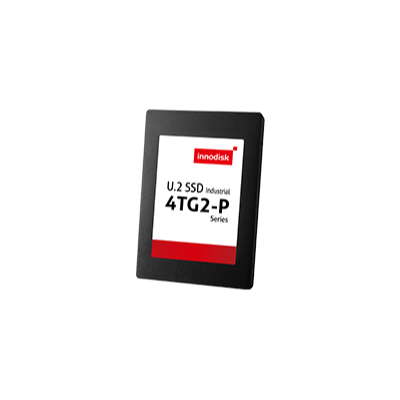

| Module Name | U.2 SSD 4TG2-P |
| Interface | PCIe Gen IV x4 |
| Flash Type | 3D TLC |
| Capacity | 512GB~16TB |
| Sequential R/W (MB/sec, max.) | 6,950/4,950 |
| Max. Power Consumption | 13.5W |
| Max. Channels | 8 |
| External DRAM Buffer | Y |
| H/W Write Protect | N |
| TCG Opal | Y (Optional) |
| Thermal Sensor | Y |
| iCell | N |
| TCG Opal | Optional |
| Dimension (WxLxH/mm) | 69.85 x 100.0 x 6.9 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. |
512GB |
1TB |
2TB |
4TB |
8TB |
16TB |
|
Standard Grade |
DGEU2-C12DP1KCAEF DGEU2-C12DP2KCAEF |
DGEU2-01TDP1KCAEF DGEU2-01TDP2KCAEF |
DGEU2-02TDP1KCAEF DGEU2-02TDP2KCAEF |
DGEU2-04TDP1KCAEF DGEU2-04TDP2KCAEF |
DGEU2-08TDP1KCAEF DGEU2-08TDP2KCAEF |
DGEU2-16TDP1KCCEF DGEU2-16TDP2KCCEF |
|
Industrial Grade |
DGEU2-C12DP1KWAEF DGEU2-C12DP2KWAEF |
DGEU2-01TDP1KWAEF DGEU2-01TDP2KWAEF |
DGEU2-02TDP1KWAEF DGEU2-02TDP2KWAEF |
DGEU2-04TDP1KWAEF DGEU2-04TDP2KWAEF |
DGEU2-08TDP1KWAEF DGEU2-08TDP2KWAEF |
DGEU2-16TDP1KWCEF DGEU2-16TDP2KWCEF |
