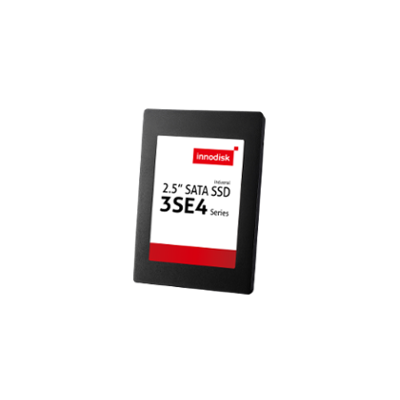

| Module Name | 2.5” SATA SSD 3SE4 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Capacity |
8GB~64GB |
| Sequential R/W (MB/sec, max.) | 520/360 |
| Max. Power Consumption | 1.1 W (5V x 220 mA ) |
| Max. Channels | 2 |
| Thermal Sensor | Y |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| ATA Security | Y |
| Dimension (WxLxH/mm) | 69.85 x 100.10 x 6.9 |
| S.M.A.R.T. | Y |
| Vibration | 20G@7~2000Hz |
| MTBF | >3 million hours |
| Shock | 1500G@0.5ms |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. |
8GB |
16GB |
32GB |
64GB |
|
Standard Grade (0°C ~ +70°C) |
DES25-08GM41SCA | DES25-16GM41SCADB | DES25-32GM41SCADB | DES25-64GM41SCADB |
|
Industrial Grade (-40°C ~ +85°C) |
DES25-08GM41SWADB | DES25-16GM41SCADB | DES25-32GM41SWADB | DES25-64GM41SWADB |
