Series Name

G-20

G-26

G2000

G2600

Standard
Interface
Protocol

CFexpress v2.00
2 lanes PCIe 3.1
NVMe 1.3

Connector

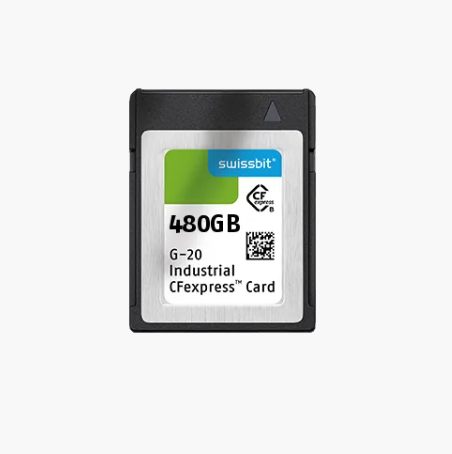

CFexpress™ Type B Card

Outline Dimensions

38.5 × 29.8 × 3.8 mm

Flash Type

3D NAND TLC

3D NAND pSLC

3D NAND TLC

3D NAND pSLC

Density Range

15-480 GB

5-160 GB

60-960 GB

20-320 GB

Data Retention

10 years @ life begin
1 year @ life end

Endurance [DWPD]

Operating Temperature

Industrial: -40°C to +85°C

Storage Temperature

-40°C to +85°C

Performance

Sequential Read (MB/s)
Sequential Write (MB/s)
Random 4KB Read (IOPS)
Random 4KB Write (IOPS)

up to 1,620
up to 700
up to 128,000
up to 121,000

up to 1,610
up to 842
up to 140,000
up to 145,000

up to 1,610
up to 924
up to 138,000
up to 143,000

MTBF

≥ 2,000,000 hours

Shock

500 g, 1 ms pulse duration, half-sine wave

Vibration

20 g, 10-2,000 Hz, 3 axes, 12 cycles/axis

Humidity

90% RH 85 °C, 96 hrs, max. supply voltage

Voltage

3.3V

Features & Tools

HMB Support
End to End Data Path Protection
AES 256 / TCG OPAL 2.0 (on request)
Firmware based Power Fail Data Loss Protection
Active State Power Management (ASPM) Support
Swissbit Device Manager (SBDM) Tool and SDK for SBDM (on request)

HMB Support
End to End Data Path Protection
AES 256 / TCG OPAL 2.0
Firmware based Power Fail Data Loss Protection
Active State Power Management (ASPM) Support
Swissbit Device Manager (SBDM) Tool and SDK for SBDM (on request)
