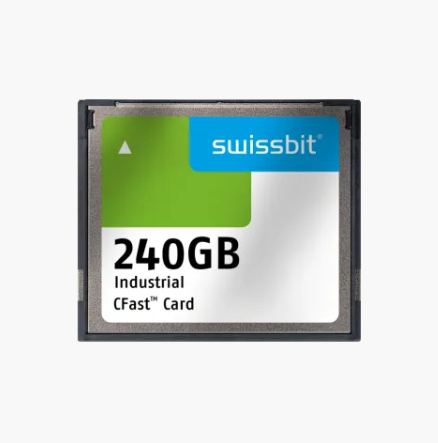

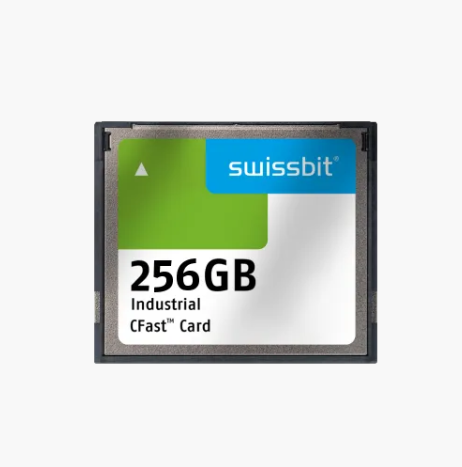

Swissbit CFast卡 FF-56 / F-50

产品简介 / Introduction

Series Name	F-800	F-86	F-75	F-600	F-50 / F-56
Interface Data Transfer Mode	CFast™ 2.0 – SATA Gen 3 6 Gbit/s ATA8
Connector	CFast™ Type I
Outline Dimensions	36.4 x 42.8 x 3.6 mm
Flash Type	SLC	3D pSLC	3D TLC	SLC	MLC / pSLC
Density Range	2-64 GB	10-160 GB	32-256 GB	8-64 GB	F-50: 8-256 GB F-56: 4-128 GB
Data Retention	10 years @ life begin 1 year @ life end
Endurance [DWPD] JESD219 Client Endurance Workload	max 32	max 13.3	max 1.79	36.3	max 1.50 / 7.98
Operating Temperature	Commercial: 0°C to +70°C Industrial: -40°C to +85°C
Storage Temperature	-40°C to +100°C
Performance Sequential Read (MB/s) Sequential Write (MB/s) Random 4KB Read (IOPS) Random 4KB Write (IOPS)	up to 320 up to 170 up to 10.5k up to 7.1k	up to 372 up to 223 up to 13.1k up to 8.3k	up to 550 up to 172 up to 53.6k up to 39.5k	up to 520 up to 245 up to 76k up to 54k	up to 500 / 510 up to 330 / 415 up to 53.5k / 32k up to 74k / 66k
MTBF	≥ 2,000,000 hours
Shock	500 G, 0.5 ms duration, half-sine wave			1,500 G, 0.5 ms duration, half-sine wave	500 G, 1 ms duration, half-sine wave
Vibration	20 G, 80-2,000 Hz			50 G, 80-2,000 Hz	20 G, 80-2,000 Hz
Humidity	85 % RH 85°C, 1,000 hrs
Voltage	3.3 V ± 5 %
Features & Tools	DRAM-Less E2E Data Path Protection NCQ, TRIM Advanced Wear Leveling & Bad Block management In-field firmware update SBDM Tool & SDK for S.M.A.R.T. based Life Time Monitoring AES 256 Encryption (optional)		Proven Power Fail Safety DRAM supported FTL NCQ, TRIM Advanced Wear Leveling & Bad Block management In-field firmware update SBDM Tool & SDK for S.M.A.R.T. based Life Time Monitoring F-6x: AES 256 Encryption (optional) F-75: AES 256 & TCG Opal 2.0		DRAM-Less Proven Power Fail Safety NCQ, TRIM Advanced Wear Leveling & Bad Block management In-field firmware update SBDM Tool & SDK for S.M.A.R.T. based Life Time Monitoring
