Support iSLC/Ultra iSLC technology
High IOPS
iSMART disk health monitoring
iPower Guard for protecting unstable start up and shut down.
iData Guard for abnormal power failure

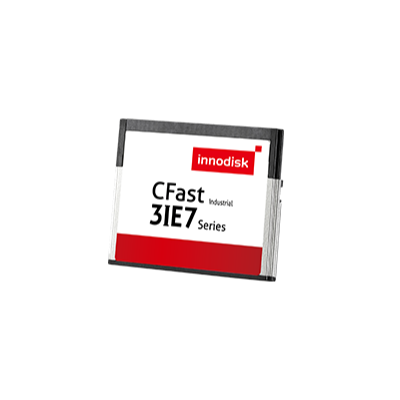

| Module Name | CFast 3IE7 |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | iSLC (3D TLC) |
| Capacity | 20GB~320GB |
| Sequential R/W (MB/sec, max.) | 560/000 |
| Max. Power Consumption | 2.0W |
| Max. Channels | 4 |
| H/W Write Protect | Y |
| Thermal Sensor | Y |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 42.8 x 36.4 x 3.6 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 20GB | 40GB | 80GB | 160GB | 320GB |
|
Standard Grade (0°C ~ +70°C)
|
DHCFA-20GDK1%C*&F(W) | DHCFA-40GDK1%C*&F(W) | DHCFA-80GDK1%C*QF(W) | DHCFA-A60GDK1%C*QF(W) | DHCFA-D2GDK1%C*QF(W) |
|
Industrial Grade (-40°C ~ +85°C) |
DHCFA-20GDK1%W*&F(W) | DHCFA-40GDK1%W*&F(W) | DHCFA-80GDK1%W*QF(W) | DHCFA-A60GDK1%W*QF(W) | DHCFA-D2GDK1%W*QF(W) |
