工业存储产品及解决方案
Excellent data transfer speed
Wear-leveling supported
Low power consumption
Metal Housing for ESD proof
Connector plated with 30µ” gold

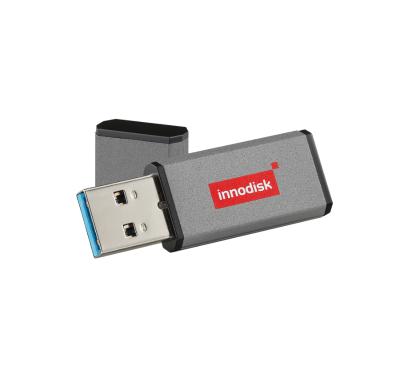

| Module Name | USB Drive 3IE4 |
| Interface | USB 3.0 |
| Flash Type | iSLC (3D TLC) |
| Type | Standard |
| Capacity | 16GB~128GB |
| Sequential R/W (MB/sec, max.) | 330/125 |
| Max. Power Consumption | 1.3W |
| Max. Channels | 1 |
| S.M.A.R.T. | -- |
| H/W Write Protect | N |
| Dimension (WxLxH/mm) | 16.60 x 61.45 x 7.60 |
| Vibration | 5G@7~2000Hz |
| Shock | 50G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -40°C ~ +85°C |
| Operation Temp. | 16GB | 32GB | 64GB | 128GB |
|
Standard Grade (0°C ~+70°C) |
DHUA1- 16GID1KCASF | DHUA1- 32GID1KCADF | DHUA1- 64GID1KCADF | DHUA1- A28ID1KCADF |
|
Industrial Grade (-40°C ~ +85°C) |
DHUA1- 16GID1KWASF | DHUA1- 32GID1KWADF | DHUA1- 64GID1KWADF | DHUA1- A28ID1KWADF |
